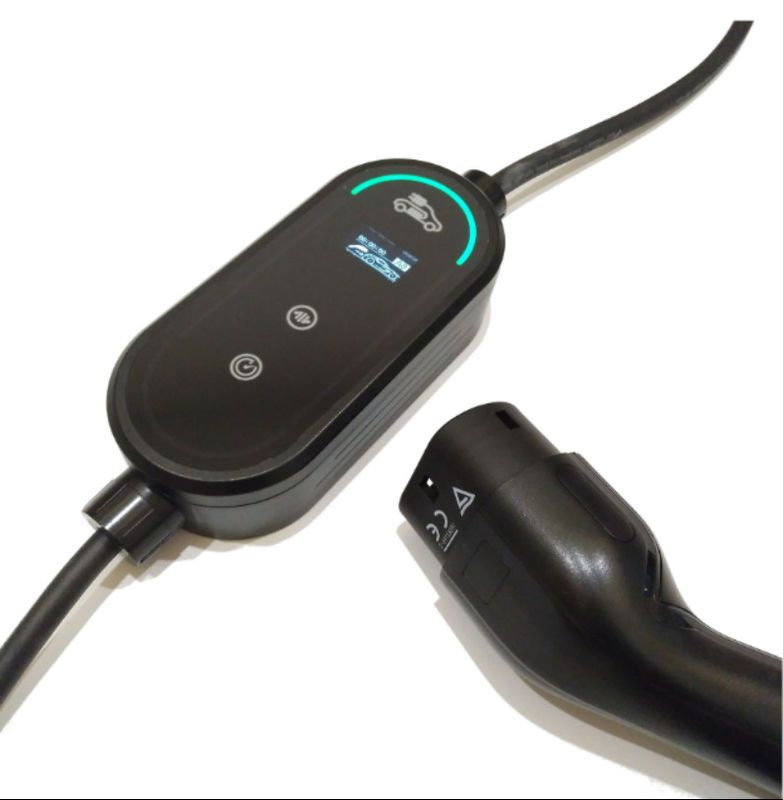

Three Phase 11kW 16A Portable EV Charger 400V

تمام دسته ها

ایستگاه شارژ EV DC

با ما تماس بگیرید

Ms. Alice Wang

info@cn-ans.com

+8615881062591

اکنون تماس بگیرید

Three Phase 11kW 16A Portable EV Charger 400V

نام تجاری:	ANS
شماره مدل:	EVB11B
مقدار تولیدی:	1
جزئیات بسته بندی:	15.7153.15 (اینچ)
شرایط پرداخت:	L/C ، T/T ، Western Union

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

نام محصول:

شارژر سه فاز EV قابل حمل 11kw

تایپ کنید:

شارژر EV قابل حمل

3 کیلوگرم

2.5 گیگاهرتز

ویژگی اصلی:

صفحه نمایش 2.4 اینچی LCE

رنگ کابل:

مشکی یا سفارشی سازی

حفاظت:

گواهی:

قابلیت ارائه:

100000 عدد در ماه

توضیحات محصول

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

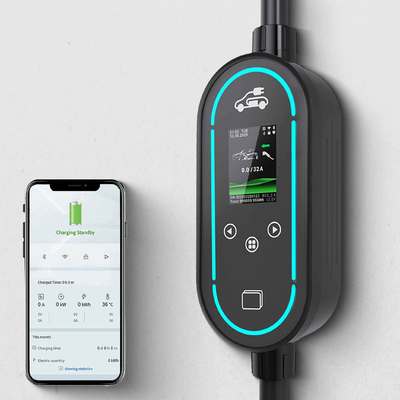

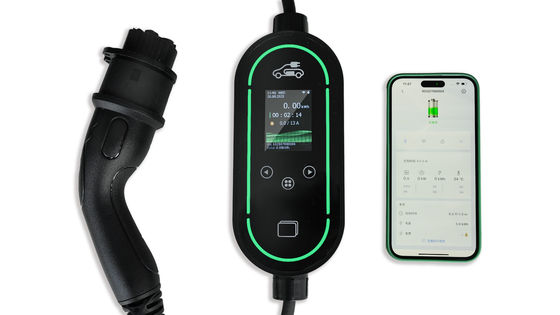

The EVB11B is a high-performance three-phase EV charger designed .With a maximum output of 11kW at 400V and 16A, it delivers efficient charging for various electric vehicles. The charger features Type B RCD protection (AC 30mA + DC 6mA), ensuring the highest safety standards during operation. Its IP67 rating makes it suitable for both indoor and outdoor installations, resistant to dust and water ingress. The 2.4-inch LCD display provides real-time monitoring of charging parameters, while WiFi and Bluetooth connectivity enable remote control and management via a dedicated mobile app.

Core Points:

3-phase 400V input, up to 11kW output power
Type B RCD with AC/DC leakage protection
Current adjustable from 6A to 16A
IP67 rated for indoor/outdoor use

Specificaiton

Product Model EVB011B
Input/Output voltage	AC 400V
Input frequency	50/60Hz
Max.output power	3 - Phase up to 11kW(@400V 16A)
Max.output current	16A for 3 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

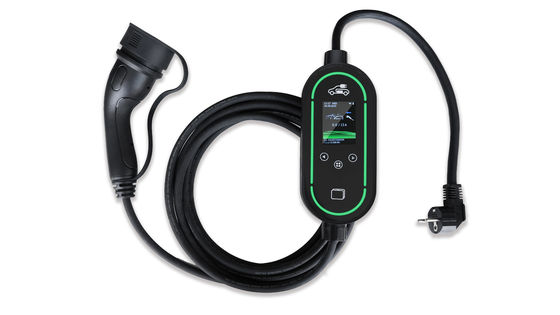

Three Phase 11kW 16A Portable EV Charger 400V 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

Three Phase 11kW 16A Portable EV Charger 400V 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Three Phase 11kW 16A Portable EV Charger 400V 2

Packaging

Our Certification

Exhibition
Three Phase 11kW 16A Portable EV Charger 400V 5

Visits from Various Countries (looking forward to your arrival)

Three Phase 11kW 16A Portable EV Charger 400V 6
